qb::protocol::text::basic_binary< _IO_, _SizeHeader > Class Template Reference

Protocol for binary messages where the payload is preceded by a fixed-size header indicating its length. More...

#include <text.h>

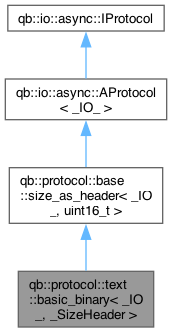

Inheritance diagram for qb::protocol::text::basic_binary< _IO_, _SizeHeader >:

Collaboration diagram for qb::protocol::text::basic_binary< _IO_, _SizeHeader >:

Classes
struct	message
	Structure representing a binary message. More...

Public Member Functions
	basic_binary ()=delete
	Default constructor (deleted)
	basic_binary (_IO_ &io) noexcept
	Constructor with I/O reference.
void	onMessage (std::size_t size) const noexcept
	Process a received message.
Public Member Functions inherited from qb::protocol::base::size_as_header< _IO_, uint16_t >
	size_as_header ()=delete
	Default constructor.
std::size_t	shiftSize () const noexcept
	Returns the size of the header.
std::size_t	getMessageSize () noexcept final
	Determines the size of the next complete message.
void	reset () noexcept final
	Resets the protocol state.
Public Member Functions inherited from qb::io::async::IProtocol
virtual	~IProtocol ()=default
	Virtual destructor.
bool	ok () const noexcept
	Checks if the protocol is in a valid operational state.
void	not_ok () noexcept
	Marks the protocol as being in an invalid or non-operational state.
void	set_should_flush (bool should_flush) noexcept
	Sets the flag indicating whether the protocol should flush the input buffer after processing a message.
bool	should_flush () const noexcept
	Gets the flag indicating whether the protocol should flush the input buffer after processing a message.

Additional Inherited Members
Static Public Member Functions inherited from qb::protocol::base::size_as_header< _IO_, uint16_t >
static uint16_t	Header (std::size_t size) noexcept
	Creates a size header for a message.
Protected Member Functions inherited from qb::io::async::AProtocol< _IO_ >
	AProtocol ()=delete
	Default constructor is deleted to ensure an I/O component is always associated.
	AProtocol (_IO_ &io) noexcept
	Constructor that associates the protocol with an I/O component.
virtual	~AProtocol ()=default
	Virtual destructor.
virtual void	onMessage (std::size_t size) noexcept=0
	Processes a complete message from the input buffer of the associated I/O component.
Protected Attributes inherited from qb::io::async::AProtocol< _IO_ >
_IO_ &	_io
	Reference to the I/O component instance that this protocol is associated with.

Detailed Description

template<typename _IO_, typename _SizeHeader = uint16_t>
class qb::protocol::text::basic_binary< _IO_, _SizeHeader >

Protocol for binary messages where the payload is preceded by a fixed-size header indicating its length.

This class implements a protocol to handle binary messages that are prefixed with a header of type _SizeHeader containing their payload size. It uses the qb::protocol::base::size_as_header protocol as its base. Upon receiving a complete message, it provides a message struct containing the raw payload data pointer and its size to the I/O component's handler.

Template Parameters

_IO_	The I/O component type that will use this protocol.
_SizeHeader	The integer type of the size header (e.g., uint8_t, uint16_t). Defaults to uint16_t.

Constructor & Destructor Documentation

basic_binary()

template<typename _IO_, typename _SizeHeader = uint16_t>

qb::protocol::text::basic_binary< _IO_, _SizeHeader >::basic_binary ( _IO_ & io )

inlinenoexcept

Constructor with I/O reference.

Parameters

io	Reference to the I/O object that uses this protocol

Member Function Documentation

onMessage()

template<typename _IO_, typename _SizeHeader = uint16_t>

void qb::protocol::text::basic_binary< _IO_, _SizeHeader >::onMessage ( std::size_t size ) const

inlinenoexcept

Process a received message.

This method is called when a complete message is received. It builds a message object and passes it to the I/O object.

Parameters

size	Message size
