qb::protocol::base::size_as_header< _IO_, _Size > Class Template Reference

Protocol for messages where the payload is preceded by a fixed-size header indicating its length. More...

#include <base.h>

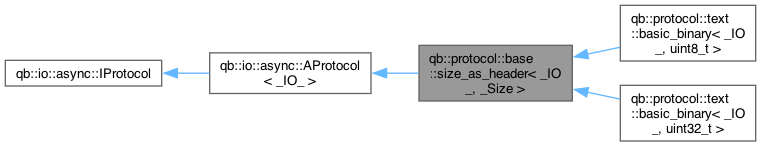

Inheritance diagram for qb::protocol::base::size_as_header< _IO_, _Size >:

Collaboration diagram for qb::protocol::base::size_as_header< _IO_, _Size >:

Public Member Functions
	size_as_header ()=delete
	Default constructor.
	size_as_header (_IO_ &io) noexcept
	Constructor with I/O reference.
std::size_t	shiftSize () const noexcept
	Returns the size of the header.
std::size_t	getMessageSize () noexcept final
	Determines the size of the next complete message.
void	reset () noexcept final
	Resets the protocol state.
Public Member Functions inherited from qb::io::async::IProtocol
virtual	~IProtocol ()=default
	Virtual destructor.
bool	ok () const noexcept
	Checks if the protocol is in a valid operational state.
void	not_ok () noexcept
	Marks the protocol as being in an invalid or non-operational state.
void	set_should_flush (bool should_flush) noexcept
	Sets the flag indicating whether the protocol should flush the input buffer after processing a message.
bool	should_flush () const noexcept
	Gets the flag indicating whether the protocol should flush the input buffer after processing a message.

Static Public Member Functions
static _Size	Header (std::size_t size) noexcept
	Creates a size header for a message.

Additional Inherited Members
Protected Member Functions inherited from qb::io::async::AProtocol< _IO_ >
	AProtocol ()=delete
	Default constructor is deleted to ensure an I/O component is always associated.
	AProtocol (_IO_ &io) noexcept
	Constructor that associates the protocol with an I/O component.
virtual	~AProtocol ()=default
	Virtual destructor.
virtual void	onMessage (std::size_t size) noexcept=0
	Processes a complete message from the input buffer of the associated I/O component.
Protected Attributes inherited from qb::io::async::AProtocol< _IO_ >
_IO_ &	_io
	Reference to the I/O component instance that this protocol is associated with.

Detailed Description

template<typename _IO_, typename _Size = uint16_t>
class qb::protocol::base::size_as_header< _IO_, _Size >

Protocol for messages where the payload is preceded by a fixed-size header indicating its length.

This class implements a protocol where each message payload is prefixed by an integer header (e.g., uint8_t, uint16_t, uint32_t) that specifies the size of the upcoming payload. It handles network byte order conversion (e.g., ntohs, ntohl) for 16-bit and 32-bit headers. It inherits from qb::io::async::AProtocol.

Template Parameters

_IO_	The I/O component type that will use this protocol. It needs to provide an in() method for input buffer access.
_Size	The integer type of the size header (e.g., uint16_t, uint32_t). Defaults to uint16_t.

Constructor & Destructor Documentation

size_as_header()

template<typename _IO_, typename _Size = uint16_t>

qb::protocol::base::size_as_header< _IO_, _Size >::size_as_header ( _IO_ & io )

inlinenoexcept

Constructor with I/O reference.

Parameters

io	Reference to the I/O object that uses this protocol

Member Function Documentation

shiftSize()

template<typename _IO_, typename _Size = uint16_t>

std::size_t qb::protocol::base::size_as_header< _IO_, _Size >::shiftSize ( ) const

inlinenoexcept

Returns the size of the header.

Returns

Header size in bytes

getMessageSize()

template<typename _IO_, typename _Size = uint16_t>

std::size_t qb::protocol::base::size_as_header< _IO_, _Size >::getMessageSize ( )

inlinefinalvirtualnoexcept

Determines the size of the next complete message.

First reads the header to determine the message size, then waits for the complete message to be available.

Returns

Size of the message if complete, 0 otherwise

Implements qb::io::async::AProtocol< _IO_ >.

Header()

template<typename _IO_, typename _Size = uint16_t>

_Size qb::protocol::base::size_as_header< _IO_, _Size >::Header ( std::size_t size )

inlinestaticnoexcept

Creates a size header for a message.

Converts the message size into an appropriate header, with endianness conversion if necessary.

Parameters

size	Size of the message

Returns

Formatted size header

reset()

template<typename _IO_, typename _Size = uint16_t>

void qb::protocol::base::size_as_header< _IO_, _Size >::reset ( )

inlinefinalvirtualnoexcept

Resets the protocol state.

Implements qb::io::async::AProtocol< _IO_ >.
