IO System

Asynchronous I/O operations, networking, and related utilities. More...

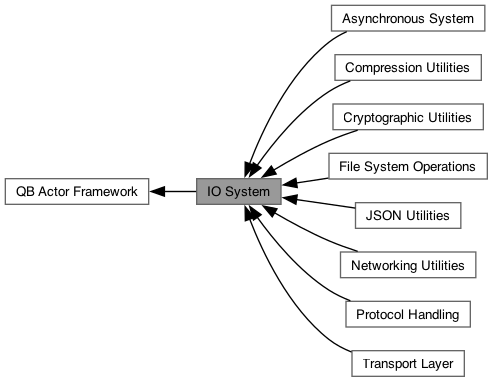

Collaboration diagram for IO System:

Topics
	Asynchronous System
	Core mechanisms for event-driven asynchronous programming.
	Networking Utilities
	Socket wrappers, endpoint representation, and URI parsing.
	Transport Layer
	Abstractions over network sockets and file operations for stream-based I/O.
	Protocol Handling
	Message framing and parsing implementations.
	File System Operations
	Components for interacting with the local file system.
	Cryptographic Utilities
	Hashing, encryption, and JWT functionalities (requires OpenSSL).
	Compression Utilities
	Data compression and decompression (requires Zlib).
	JSON Utilities
	JSON parsing, manipulation, and serialization utilities.

Files
file	io.h
	Core I/O and logging utilities for the qb framework.
file	async.h
	Main include file for the QB asynchronous I/O library.
file	epoll.h
	Epoll-based event polling for Linux systems.
file	all.h
	Aggregation of all event types for the asynchronous I/O system.
file	base.h
	Base class for asynchronous events in the QB IO library.
file	file.h
	Asynchronous file operations for the QB IO library.
file	io.h
	Core asynchronous I/O class templates for event-driven operations.
file	protocol.h
	Protocol interfaces for message processing in the asynchronous IO framework.
file	config.h
	Configuration and platform-specific definitions for the QB IO library.
file	accept.h
	Protocol for accepting new connections in asynchronous I/O.
file	base.h
	Base protocol implementations for message framing in the QB IO system.
file	handshake.h
	Protocol for handling the handshake of a new connection.
file	json.h
	JSON protocol implementations for the QB IO system.
file	text.h
	Protocols for processing text and binary messages in the QB IO system.
file	stream.h
	Core stream abstraction classes for the QB IO library.
file	uri.h
	URI parsing and manipulation utilities.

Macros
#define	QB_ENABLE_UDS   1
	Enables Unix Domain Socket support via SOCK_STREAM.
#define	QB__DECL
	Function declaration specifier that changes based on whether header-only mode is enabled.
#define	QB_INTEROP_DECL
	Interoperability declaration for function pointers.
#define	QB_ARRAYSIZE(A)
	Macro to calculate the number of elements in a statically-allocated array.
#define	QB_SSIZEOF(T)
	Macro to get the size of a type as a signed integer.
#define	QB_OBSOLETE_DEPRECATE(_Replacement)
	Marks functions as deprecated with a replacement suggestion.
#define	QB_VERSION_NUM   0x033705
	Defines the QB library version number in hexadecimal format.
#define	QB_DEFAULT_MULTICAST_TTL   (int) 128
	Default Time-To-Live value for multicast packets.
#define	QB_INET_BUFFER_SIZE   65536
	Maximum size for internet protocol buffers.
#define	QB_MAX_PDU_BUFFER_SIZE   static_cast<int>(1 * 1024 * 1024)
	Maximum Protocol Data Unit buffer size.
#define	QB_UNPACK_MAX_STRIP   32
	Maximum number of initial bytes that can be stripped during unpacking.
#define	SD_RECEIVE   SHUT_RD
	Socket shutdown flag for disabling receive operations.
#define	SD_SEND   SHUT_WR
	Socket shutdown flag for disabling send operations.
#define	SD_BOTH   SHUT_RDWR
	Socket shutdown flag for disabling both send and receive operations.
#define	closesocket   close
	Cross-platform macro for closing a socket.
#define	ioctlsocket   ioctl
	Cross-platform macro for socket I/O control.
#define	FD_TO_SOCKET(fd)
	Converts a file descriptor to a socket handle.
#define	OPEN_FD_FROM_SOCKET(sock)
	Converts a socket handle to a file descriptor.
#define	SD_NONE   -1
	Special value indicating no socket shutdown operation.
#define	MAXNS   3
	Maximum number of nameservers.
#define	IN_MAX_ADDRSTRLEN   INET6_ADDRSTRLEN
	Maximum length of string representation for an IP address.

Typedefs
typedef int	socket_type
	Cross-platform socket handle type.

Detailed Description

Asynchronous I/O operations, networking, and related utilities.

Provides non-blocking I/O for TCP, UDP, SSL, files, along with protocols, cryptographic functions, and compression.

Macro Definition Documentation

QB_ENABLE_UDS

#define QB_ENABLE_UDS   1

Enables Unix Domain Socket support via SOCK_STREAM.

When defined as 1, enables support for Unix Domain Sockets which provide efficient inter-process communication on Unix-like systems

QB__DECL

#define QB__DECL

Function declaration specifier that changes based on whether header-only mode is enabled.

When QB_HEADER_ONLY is defined, functions are marked as inline

QB_INTEROP_DECL

#define QB_INTEROP_DECL

Interoperability declaration for function pointers.

Used for properly storing managed C# functions as C++ function pointers Uses __stdcall on 32-bit Windows platforms

QB_ARRAYSIZE

#define QB_ARRAYSIZE

(

A

)

Value:

(sizeof(A) / sizeof((A)[0]))

Macro to calculate the number of elements in a statically-allocated array.

Parameters

A	Array to determine the size of

Returns

Number of elements in the array

QB_SSIZEOF

#define QB_SSIZEOF

(

T

)

Value:

static_cast<int>(sizeof(T))

Macro to get the size of a type as a signed integer.

Parameters

T	Type to get the size of

Returns

Size of the type as a signed integer

QB_OBSOLETE_DEPRECATE

#define QB_OBSOLETE_DEPRECATE

(

_Replacement

)

Marks functions as deprecated with a replacement suggestion.

Cross-platform macro that applies the appropriate compiler-specific deprecation annotation. On GCC/Clang, it uses attribute((deprecated)), on MSVC it uses __declspec(deprecated) with a message suggesting the replacement.

Parameters

_Replacement

The recommended replacement function name

QB_VERSION_NUM

#define QB_VERSION_NUM   0x033705

Defines the QB library version number in hexadecimal format.

Format is 0xMMNNRR where MM=major, NN=minor, RR=revision

QB_DEFAULT_MULTICAST_TTL

#define QB_DEFAULT_MULTICAST_TTL   (int) 128

Default Time-To-Live value for multicast packets.

Sets the default number of hops a multicast packet can traverse

QB_INET_BUFFER_SIZE

#define QB_INET_BUFFER_SIZE   65536

Maximum size for internet protocol buffers.

Defines the maximum buffer size for TCP/IP communication (65536 bytes)

QB_MAX_PDU_BUFFER_SIZE

#define QB_MAX_PDU_BUFFER_SIZE   static_cast<int>(1 * 1024 * 1024)

Maximum Protocol Data Unit buffer size.

Limits the size of PDU buffers to avoid large memory allocations when decoding (1MB)

QB_UNPACK_MAX_STRIP

#define QB_UNPACK_MAX_STRIP   32

Maximum number of initial bytes that can be stripped during unpacking.

Limits the number of bytes that can be removed from the beginning of a message during protocol unpacking operations

SD_RECEIVE

#define SD_RECEIVE   SHUT_RD

Socket shutdown flag for disabling receive operations.

Cross-platform macro that maps to platform-specific constants (SHUT_RD on Unix, SD_RECEIVE on Windows)

SD_SEND

#define SD_SEND   SHUT_WR

Socket shutdown flag for disabling send operations.

Cross-platform macro that maps to platform-specific constants (SHUT_WR on Unix, SD_SEND on Windows)

SD_BOTH

#define SD_BOTH   SHUT_RDWR

Socket shutdown flag for disabling both send and receive operations.

Cross-platform macro that maps to platform-specific constants (SHUT_RDWR on Unix, SD_BOTH on Windows)

closesocket

#define closesocket   close

Cross-platform macro for closing a socket.

Maps to close() on Unix systems, keeps closesocket() on Windows

ioctlsocket

#define ioctlsocket   ioctl

Cross-platform macro for socket I/O control.

Maps to ioctl() on Unix systems, keeps ioctlsocket() on Windows

FD_TO_SOCKET

#define FD_TO_SOCKET

(

fd

)

Value:

fd

Converts a file descriptor to a socket handle.

On Unix, returns fd unchanged. On Windows, converts using _get_osfhandle()

Parameters

fd	File descriptor to convert

Returns

Equivalent socket handle

OPEN_FD_FROM_SOCKET

#define OPEN_FD_FROM_SOCKET

(

sock

)

Value:

sock

Converts a socket handle to a file descriptor.

On Unix, returns sock unchanged. On Windows, converts using _open_osfhandle()

Parameters

sock	Socket handle to convert

Returns

Equivalent file descriptor

SD_NONE

#define SD_NONE   -1

Special value indicating no socket shutdown operation.

Used to indicate that no shutdown operation should be performed

MAXNS

#define MAXNS   3

Maximum number of nameservers.

Defines the maximum number of DNS nameservers that can be configured

IN_MAX_ADDRSTRLEN

#define IN_MAX_ADDRSTRLEN   INET6_ADDRSTRLEN

Maximum length of string representation for an IP address.

Set to INET6_ADDRSTRLEN to accommodate IPv6 addresses, which are longer than IPv4

Typedef Documentation

socket_type

typedef int socket_type

Cross-platform socket handle type.

int on Unix systems, SOCKET (unsigned integer) on Windows
