qb::io::async::io< _Derived > Class Template Reference

CRTP base class for managing bidirectional asynchronous I/O operations with protocol processing. More...

#include <io.h>

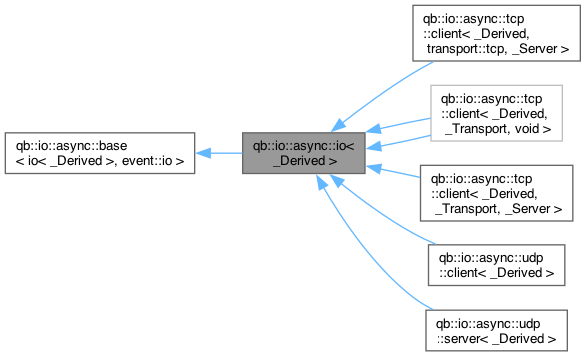

Inheritance diagram for qb::io::async::io< _Derived >:

Collaboration diagram for qb::io::async::io< _Derived >:

Public Types
typedef io< _Derived >	base_io_t
	Base I/O type alias for CRTP.

Public Member Functions
	io ()=default
	Default constructor.
	io (IProtocol *protocol) noexcept
	Constructor with an initial protocol instance.
	io (io const &)=delete
	Deleted copy constructor.
	~io () noexcept
	Destructor.
template<typename _Protocol, typename... _Args>
_Protocol *	switch_protocol (_Args &&...args)
	Switches to a new protocol for I/O processing, taking ownership.
void	clear_protocols ()
	Clears all owned protocol instances.
IProtocol *	protocol ()
	Gets a pointer to the current active protocol instance.
void	start () noexcept
	Starts bidirectional asynchronous I/O operations.
void	ready_to_read () noexcept
	Ensures the I/O watcher is listening for read events (EV_READ).
void	ready_to_write () noexcept
	Ensures the I/O watcher is listening for write events (EV_WRITE).
void	close_after_deliver () const noexcept
	Requests connection closure after all pending output data is delivered.
template<typename... _Args>
auto &	publish (_Args &&...args) noexcept
	Publishes data to the output buffer and ensures write readiness.
template<typename T>
auto &	operator<< (T &&data)
	Stream operator for publishing data.
void	disconnect (int reason=1)
	Initiates a graceful disconnection.

Static Public Attributes
static constexpr const bool	has_server = false
	Indicates this component is not inherently a server.

Protected Member Functions
void	dispose ()
	Disposes of resources and finalizes disconnection for the I/O component.
Protected Member Functions inherited from qb::io::async::base< io< _Derived >, event::io >
	base ()
	Constructor that registers the event watcher with the current listener.
	~base ()
	Destructor that unregisters the event watcher.

Additional Inherited Members
Protected Attributes inherited from qb::io::async::base< io< _Derived >, event::io >
event::io &	_async_event
	Reference to the registered libev-based event watcher.

Detailed Description

template<typename _Derived>
class qb::io::async::io< _Derived >

CRTP base class for managing bidirectional asynchronous I/O operations with protocol processing.

This template class combines input and output capabilities. It uses a single event::io watcher to monitor a file descriptor for both read and write readiness. Data is read into an input buffer and processed by a protocol, while outgoing data is buffered and written to the transport when ready.

Template Parameters

_Derived

The derived class type (CRTP pattern) that provides the transport and handles protocol messages and I/O events.

Constructor & Destructor Documentation

io() [1/2]

template<typename _Derived>

qb::io::async::io< _Derived >::io ( )

default

Default constructor.

Initializes the I/O component without a specific protocol.

io() [2/2]

template<typename _Derived>

qb::io::async::io< _Derived >::io ( IProtocol * protocol )

inlinenoexcept

Constructor with an initial protocol instance.

Parameters

protocol

Pointer to an existing protocol instance. This io component will use it and take ownership by adding it to its internal list of protocols.

~io()

template<typename _Derived>

qb::io::async::io< _Derived >::~io ( )

inlinenoexcept

Destructor.

Cleans up owned protocols via clear_protocols(). Base class handles watcher unregistration.

Member Function Documentation

switch_protocol()

template<typename _Derived>

template<typename _Protocol, typename... _Args>

_Protocol * qb::io::async::io< _Derived >::switch_protocol ( _Args &&... args )

inline

Switches to a new protocol for I/O processing, taking ownership.

Template Parameters

_Protocol	The concrete AProtocol type to instantiate.
_Args	Argument types for the _Protocol constructor.

Parameters

args	Arguments to forward to the _Protocol constructor.

Returns

Pointer to the new protocol if successful, nullptr otherwise.

clear_protocols()

template<typename _Derived>

void qb::io::async::io< _Derived >::clear_protocols ( )

inline

Clears all owned protocol instances.

Deletes protocols in _protocol_list and resets _protocol pointer to nullptr.

protocol()

template<typename _Derived>

IProtocol * qb::io::async::io< _Derived >::protocol ( )

inline

Gets a pointer to the current active protocol instance.

Returns

Pointer to the IProtocol for message parsing/formatting.

start()

template<typename _Derived>

void qb::io::async::io< _Derived >::start ( )

inlinenoexcept

Starts bidirectional asynchronous I/O operations.

Sets the transport to non-blocking and starts listening for read events (EV_READ). Resets disconnection reason.

ready_to_read()

template<typename _Derived>

void qb::io::async::io< _Derived >::ready_to_read ( )

inlinenoexcept

Ensures the I/O watcher is listening for read events (EV_READ).

Modifies the event watcher flags to include EV_READ if not already set.

ready_to_write()

template<typename _Derived>

void qb::io::async::io< _Derived >::ready_to_write ( )

inlinenoexcept

Ensures the I/O watcher is listening for write events (EV_WRITE).

Modifies the event watcher flags to include EV_WRITE if not already set.

close_after_deliver()

template<typename _Derived>

void qb::io::async::io< _Derived >::close_after_deliver ( ) const

inlinenoexcept

Requests connection closure after all pending output data is delivered.

Marks the current protocol as invalid (_protocol->not_ok()). The on(event::io&) handler will then initiate dispose() after successfully writing any remaining buffered output if the protocol is not ok and output buffer is empty.

publish()

template<typename _Derived>

template<typename... _Args>

auto & qb::io::async::io< _Derived >::publish ( _Args &&... args )

inlinenoexcept

Publishes data to the output buffer and ensures write readiness.

Template Parameters

_Args

Types of data to publish.

Parameters

args	Data arguments to stream into _Derived::out().

Returns

Reference to _Derived::out() buffer.

operator<<()

template<typename _Derived>

template<typename T>

auto & qb::io::async::io< _Derived >::operator<< ( T && data )

inline

Stream operator for publishing data.

Template Parameters

T	Type of data.

Parameters

data	Data to publish.

Returns

Reference to _Derived::out() buffer.

disconnect()

template<typename _Derived>

void qb::io::async::io< _Derived >::disconnect ( int reason = 1 )

inline

Initiates a graceful disconnection.

Parameters

reason

Optional reason code for disconnection.

Triggers the dispose() mechanism via an EV_UNDEF event sent to the event loop.

dispose()

template<typename _Derived>

void qb::io::async::io< _Derived >::dispose ( )

inlineprotected

Disposes of resources and finalizes disconnection for the I/O component.

Ensures cleanup happens only once (via _is_disposed). Triggers _Derived::on(event::disconnected&) (with _reason) or _Derived::on(event::dispose&) based on derived class capabilities and server association. This is the primary cleanup point before the async::base destructor unregisters the watcher.
