qb::io::async::AProtocol< _IO_ > Class Template Reference

Abstract base class for I/O-component-aware protocols (CRTP). More...

#include <protocol.h>

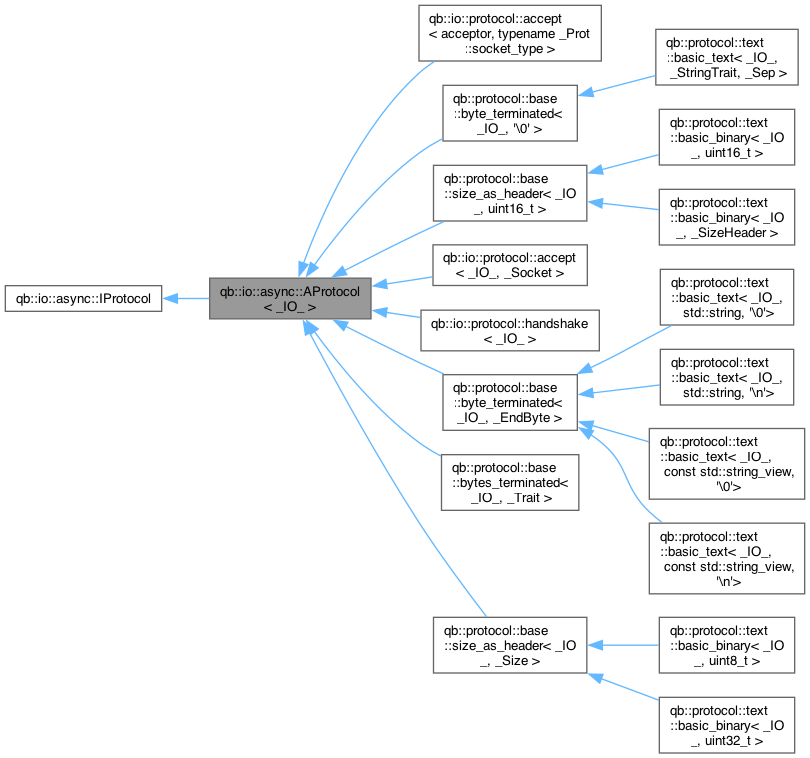

Inheritance diagram for qb::io::async::AProtocol< _IO_ >:

Collaboration diagram for qb::io::async::AProtocol< _IO_ >:

Protected Member Functions
	AProtocol ()=delete
	Default constructor is deleted to ensure an I/O component is always associated.
	AProtocol (_IO_ &io) noexcept
	Constructor that associates the protocol with an I/O component.
virtual	~AProtocol ()=default
	Virtual destructor.
virtual std::size_t	getMessageSize () noexcept=0
	Determines the size of the next complete message in the input buffer of the associated I/O component.
virtual void	onMessage (std::size_t size) noexcept=0
	Processes a complete message from the input buffer of the associated I/O component.
virtual void	reset () noexcept=0
	Resets the internal parsing state of the protocol.

Protected Attributes
_IO_ &	_io
	Reference to the I/O component instance that this protocol is associated with.

Additional Inherited Members
Public Member Functions inherited from qb::io::async::IProtocol
virtual	~IProtocol ()=default
	Virtual destructor.
bool	ok () const noexcept
	Checks if the protocol is in a valid operational state.
void	not_ok () noexcept
	Marks the protocol as being in an invalid or non-operational state.
void	set_should_flush (bool should_flush) noexcept
	Sets the flag indicating whether the protocol should flush the input buffer after processing a message.
bool	should_flush () const noexcept
	Gets the flag indicating whether the protocol should flush the input buffer after processing a message.

Detailed Description

template<typename _IO_>
class qb::io::async::AProtocol< _IO_ >

Abstract base class for I/O-component-aware protocols (CRTP).

This template class extends the IProtocol interface and is designed to be used with the Curiously Recurring Template Pattern (CRTP). It provides the protocol implementation with a reference (_io) to its associated I/O component (_IO_), allowing the protocol to interact with the I/O component's buffers and dispatch parsed messages to its handlers.

Template Parameters

_IO_	The I/O component type (e.g., MyTcpSession) that this protocol works with. This _IO_ type is expected to provide access to input/output buffers (e.g., _io.in(), _io.out()) and an on(typename ProtocolType::message&&) handler for received messages.

Constructor & Destructor Documentation

AProtocol()

template<typename _IO_>

qb::io::async::AProtocol< _IO_ >::AProtocol ( _IO_ & io )

inlineprotectednoexcept

Constructor that associates the protocol with an I/O component.

Parameters

io	Reference to the I/O component (_IO_&) that will use this protocol instance.

Member Function Documentation

getMessageSize()

template<typename _IO_>

virtual std::size_t qb::io::async::AProtocol< _IO_ >::getMessageSize ( )

protectedpure virtualnoexcept

Determines the size of the next complete message in the input buffer of the associated I/O component.

Returns

Size of the next complete message in bytes, or 0 if not enough data is available.

Concrete protocols must implement this to define their message framing logic by inspecting this->_io.in().

See also

IProtocol::getMessageSize()

Implements qb::io::async::IProtocol.

Implemented in qb::io::protocol::accept< _IO_, _Socket >, qb::io::protocol::accept< acceptor, typename _Prot::socket_type >, qb::io::protocol::handshake< _IO_ >, qb::protocol::base::byte_terminated< _IO_, _EndByte >, qb::protocol::base::byte_terminated< _IO_, '\0' >, qb::protocol::base::byte_terminated< IO_, '\0'>, qb::protocol::base::bytes_terminated< _IO_, _Trait >, qb::protocol::base::size_as_header< _IO_, _Size >, and qb::protocol::base::size_as_header< _IO_, uint16_t >.

onMessage()

template<typename _IO_>

virtual void qb::io::async::AProtocol< _IO_ >::onMessage ( std::size_t size )

protectedpure virtualnoexcept

Processes a complete message from the input buffer of the associated I/O component.

Parameters

size	The size of the complete message to process.

Concrete protocols must implement this to parse the message and typically call this->_io.on(typename ConcreteProtocol::message{...}).

See also

IProtocol::onMessage()

Implements qb::io::async::IProtocol.

Implemented in qb::io::protocol::accept< _IO_, _Socket >, qb::io::protocol::accept< acceptor, typename _Prot::socket_type >, qb::io::protocol::handshake< _IO_ >, qb::protocol::json< IO_ >, qb::protocol::json_packed< IO_ >, qb::protocol::text::basic_text< _IO_, _StringTrait, _Sep >, qb::protocol::text::basic_text< _IO_, const std::string_view, '\0'>, qb::protocol::text::basic_text< _IO_, const std::string_view, '\n'>, qb::protocol::text::basic_text< _IO_, std::string, '\0'>, and qb::protocol::text::basic_text< _IO_, std::string, '\n'>.

reset()

template<typename _IO_>

virtual void qb::io::async::AProtocol< _IO_ >::reset ( )

protectedpure virtualnoexcept

Resets the internal parsing state of the protocol.

See also

IProtocol::reset()

Implements qb::io::async::IProtocol.

Implemented in qb::io::protocol::accept< _IO_, _Socket >, qb::io::protocol::accept< acceptor, typename _Prot::socket_type >, qb::io::protocol::handshake< _IO_ >, qb::protocol::base::byte_terminated< _IO_, _EndByte >, qb::protocol::base::byte_terminated< _IO_, '\0' >, qb::protocol::base::byte_terminated< IO_, '\0'>, qb::protocol::base::bytes_terminated< _IO_, _Trait >, qb::protocol::base::size_as_header< _IO_, _Size >, and qb::protocol::base::size_as_header< _IO_, uint16_t >.
