qb::protocol::json_packed< IO_ > Class Template Reference

Protocol for parsing null-terminated, MessagePack encoded JSON messages. More...

#include <json.h>

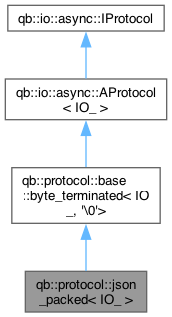

Inheritance diagram for qb::protocol::json_packed< IO_ >:

Collaboration diagram for qb::protocol::json_packed< IO_ >:

Classes
struct	message
	Structure representing a MessagePack encoded JSON message. More...

Public Member Functions
	json_packed ()=delete
	Default constructor (deleted)
	json_packed (IO_ &io) noexcept
	Constructor with I/O reference.
void	onMessage (std::size_t size) noexcept final
	Process a received message.
Public Member Functions inherited from qb::protocol::base::byte_terminated< IO_, '\0'>
	byte_terminated ()=delete
	Default constructor (deleted)
virtual	~byte_terminated ()=default
	Virtual destructor.
std::size_t	shiftSize (std::size_t const size) const noexcept
	Calculates the message size without the delimiter.
std::size_t	getMessageSize () noexcept final
	Determines the size of the next complete message.
void	reset () noexcept final
	Resets the protocol state.
Public Member Functions inherited from qb::io::async::IProtocol
virtual	~IProtocol ()=default
	Virtual destructor.
bool	ok () const noexcept
	Checks if the protocol is in a valid operational state.
void	not_ok () noexcept
	Marks the protocol as being in an invalid or non-operational state.
void	set_should_flush (bool should_flush) noexcept
	Sets the flag indicating whether the protocol should flush the input buffer after processing a message.
bool	should_flush () const noexcept
	Gets the flag indicating whether the protocol should flush the input buffer after processing a message.

Additional Inherited Members
Static Public Attributes inherited from qb::protocol::base::byte_terminated< IO_, '\0'>
static constexpr const std::size_t	delimiter_size
	Delimiter size (1 byte)
static constexpr const char	end
	End character.
Protected Member Functions inherited from qb::io::async::AProtocol< IO_ >
	AProtocol ()=delete
	Default constructor is deleted to ensure an I/O component is always associated.
virtual	~AProtocol ()=default
	Virtual destructor.
Protected Attributes inherited from qb::io::async::AProtocol< IO_ >
IO_ &	_io
	Reference to the I/O component instance that this protocol is associated with.

Detailed Description

template<typename IO_>
class qb::protocol::json_packed< IO_ >

Protocol for parsing null-terminated, MessagePack encoded JSON messages.

This class implements a protocol to handle messages that are MessagePack encoded JSON, terminated by a NULL character (‘’\0'). It uses base::byte_terminated for framing and then deserializes the MessagePack data into an nlohmann::json` object.

The onMessage method provides a message struct containing the raw MessagePack data, its size, and the deserialized nlohmann::json object to the I/O component's handler.

Template Parameters

IO_	The I/O component type that will use this protocol. It must be compatible with base::byte_terminated.

Constructor & Destructor Documentation

json_packed()

template<typename IO_>

qb::protocol::json_packed< IO_ >::json_packed ( IO_ & io )

inlineexplicitnoexcept

Constructor with I/O reference.

Parameters

io	Reference to the I/O object that uses this protocol

Member Function Documentation

onMessage()

template<typename IO_>

void qb::protocol::json_packed< IO_ >::onMessage ( std::size_t size )

inlinefinalvirtualnoexcept

Process a received message.

This method is called when a complete message is received. It builds a message object with the JSON parsed from MessagePack format and passes it to the I/O object.

Parameters

size	Message size with the delimiter

Implements qb::io::async::AProtocol< IO_ >.
