qb::io::async::udp::server< _Derived > Class Template Reference

Asynchronous UDP server implementation. More...

#include <server.h>

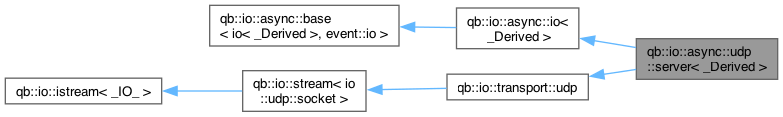

Inheritance diagram for qb::io::async::udp::server< _Derived >:

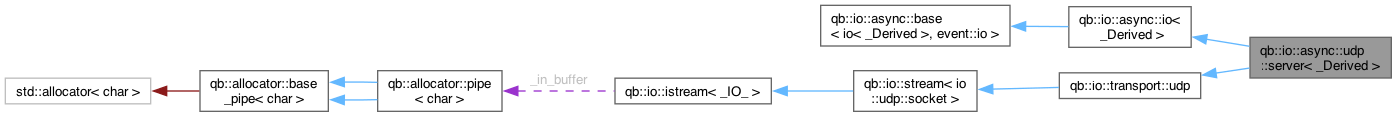

Collaboration diagram for qb::io::async::udp::server< _Derived >:

Public Member Functions
	server () noexcept
	Constructor.
Public Member Functions inherited from qb::io::async::io< _Derived >
	io ()=default
	Default constructor.
	io (IProtocol *protocol) noexcept
	Constructor with an initial protocol instance.
	io (io const &)=delete
	Deleted copy constructor.
	~io () noexcept
	Destructor.
template<typename _Protocol, typename... _Args>
_Protocol *	switch_protocol (_Args &&...args)
	Switches to a new protocol for I/O processing, taking ownership.
void	clear_protocols ()
	Clears all owned protocol instances.
IProtocol *	protocol ()
	Gets a pointer to the current active protocol instance.
void	start () noexcept
	Starts bidirectional asynchronous I/O operations.
void	ready_to_read () noexcept
	Ensures the I/O watcher is listening for read events (EV_READ).
void	ready_to_write () noexcept
	Ensures the I/O watcher is listening for write events (EV_WRITE).
void	close_after_deliver () const noexcept
	Requests connection closure after all pending output data is delivered.
template<typename... _Args>
auto &	publish (_Args &&...args) noexcept
	Publishes data to the output buffer and ensures write readiness.
template<typename T>
auto &	operator<< (T &&data)
	Stream operator for publishing data.
void	disconnect (int reason=1)
	Initiates a graceful disconnection.
Public Member Functions inherited from qb::io::transport::udp
constexpr bool	is_secure () const noexcept
	Indicates that this transport implementation is not secure.
const udp::identity &	getSource () const noexcept
	Get the source udp::identity (endpoint) of the last successfully received datagram.
void	setDestination (udp::identity const &to) noexcept
	Set the destination udp::identity for subsequent outgoing datagrams sent via out() or operator<<.
auto &	out ()
	Get the output proxy (ProxyOut) for stream-like sending to the current destination.
int	read () noexcept
	Read a single datagram from the UDP socket.
int	write () noexcept
	Write the next complete datagram from the output buffer to its destination.
char *	publish (char const *data, std::size_t size) noexcept
	Publish (enqueue) data to be sent to the current default destination (_remote_dest).
char *	publish_to (udp::identity const &to, char const *data, std::size_t size) noexcept
	Publish (enqueue) data to be sent to a specific udp::identity destination.
Public Member Functions inherited from qb::io::stream< io::udp::socket >
output_buffer_type &	out () noexcept
	Get the output buffer.
std::size_t	pendingWrite () const noexcept
	Get the number of bytes pending for writing.
int	write (std::enable_if_t< has_method_write< io::udp::socket, int, const char *, std::size_t >::value, Available > *=nullptr) noexcept
	Write data from the output buffer to the transport.
char *	publish (char const *data, std::size_t size) noexcept
	Add data to the output buffer for later writing.
void	close () noexcept
	Close the stream.
Public Member Functions inherited from qb::io::istream< _IO_ >
	~istream () noexcept
	Destructor.
_IO_ &	transport () noexcept
	Get the underlying transport object.
const _IO_ &	transport () const noexcept
	Get the underlying transport object (const version)
input_buffer_type &	in () noexcept
	Get the input buffer.
std::size_t	pendingRead () const noexcept
	Get the number of bytes available for reading.
template<typename Available = void>
int	read (std::enable_if_t< has_method_read< _IO_, int, char *, std::size_t >::value, Available > *=nullptr) noexcept
	Read data from the transport into the input buffer.
void	flush (std::size_t size) noexcept
	Remove data from the front of the input buffer.
void	eof () noexcept
	Handle end-of-file condition.
void	close () noexcept
	Close the stream.

Static Public Attributes
static constexpr const bool	has_server
	Flag indicating server association (false for UDP servers)
Static Public Attributes inherited from qb::io::async::io< _Derived >
static constexpr const bool	has_server = false
	Indicates this component is not inherently a server.
Static Public Attributes inherited from qb::io::transport::udp
static constexpr const bool	has_reset_on_pending_read = true
	Indicates that this transport implementation resets its input buffer state when a read operation is pending (characteristic of datagram processing).
Static Public Attributes inherited from qb::io::stream< io::udp::socket >
static constexpr const bool	has_reset_on_pending_read
	Flag indicating whether the implementation resets pending reads.

Additional Inherited Members
Public Types inherited from qb::io::async::io< _Derived >
typedef io< _Derived >	base_io_t
	Base I/O type alias for CRTP.
Public Types inherited from qb::io::stream< io::udp::socket >
using	transport_io_type
	Type of the underlying transport IO.
using	output_buffer_type
	Type of the output buffer.
Public Types inherited from qb::io::istream< _IO_ >
using	transport_io_type = _IO_
	Type of the underlying transport IO.
using	input_buffer_type = qb::allocator::pipe<char>
	Type of the input buffer.
Public Attributes inherited from qb::io::transport::udp
friend	ProxyOut
	ProxyOut needs access to private members.
Protected Member Functions inherited from qb::io::async::io< _Derived >
void	dispose ()
	Disposes of resources and finalizes disconnection for the I/O component.
Protected Member Functions inherited from qb::io::async::base< io< _Derived >, event::io >
	base ()
	Constructor that registers the event watcher with the current listener.
	~base ()
	Destructor that unregisters the event watcher.
Protected Attributes inherited from qb::io::async::base< io< _Derived >, event::io >
event::io &	_async_event
	Reference to the registered libev-based event watcher.
Protected Attributes inherited from qb::io::stream< io::udp::socket >
output_buffer_type	_out_buffer
	Buffer for outgoing data.
Protected Attributes inherited from qb::io::istream< _IO_ >
_IO_	_in
	The underlying IO object.
input_buffer_type	_in_buffer
	Buffer for incoming data.

Detailed Description

template<typename _Derived>
class qb::io::async::udp::server< _Derived >

Asynchronous UDP server implementation.

Alternative UDP server implementation with session tracking.

This template class implements a simple asynchronous UDP server. It combines the io class for asynchronous operations with the UDP transport for handling UDP communications. If the derived class defines a Protocol type, it will be used for processing UDP messages.

Template Parameters

_Derived

The derived class type (CRTP pattern)

This template class implements a more complex UDP server that tracks client sessions based on their endpoint identity.

Template Parameters

_Derived	The derived class type (CRTP pattern)
_Session	The session class type for handling client communications

Constructor & Destructor Documentation

server()

template<typename _Derived>

qb::io::async::udp::server< _Derived >::server ( )

inlinenoexcept

Constructor.

Creates a new UDP server. If the derived class defines a Protocol type that is not void, an instance of that protocol is created and attached to the server.

Member Data Documentation

has_server

template<typename _Derived>

const bool qb::io::async::udp::server< _Derived >::has_server

staticconstexpr

Initial value:

=
        false

Flag indicating server association (false for UDP servers)
