qb::io::async::udp::client< _Derived > Class Template Reference

Asynchronous UDP client implementation. More...

#include <client.h>

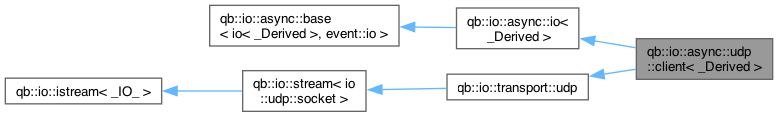

Inheritance diagram for qb::io::async::udp::client< _Derived >:

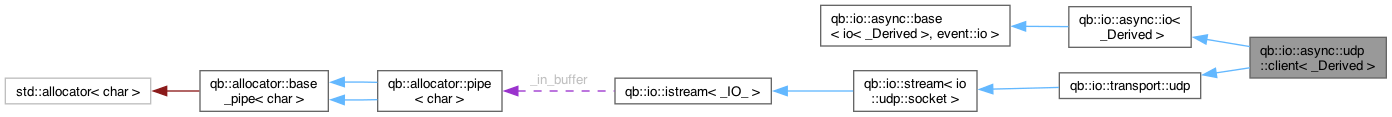

Collaboration diagram for qb::io::async::udp::client< _Derived >:

Public Member Functions
	client () noexcept
	Constructor.
Public Member Functions inherited from qb::io::async::io< _Derived >
	io ()=default
	Default constructor.
	io (IProtocol *protocol) noexcept
	Constructor with an initial protocol instance.
	io (io const &)=delete
	Deleted copy constructor.
	~io () noexcept
	Destructor.
template<typename _Protocol, typename... _Args>
_Protocol *	switch_protocol (_Args &&...args)
	Switches to a new protocol for I/O processing, taking ownership.
void	clear_protocols ()
	Clears all owned protocol instances.
IProtocol *	protocol ()
	Gets a pointer to the current active protocol instance.
void	start () noexcept
	Starts bidirectional asynchronous I/O operations.
void	ready_to_read () noexcept
	Ensures the I/O watcher is listening for read events (EV_READ).
void	ready_to_write () noexcept
	Ensures the I/O watcher is listening for write events (EV_WRITE).
void	close_after_deliver () const noexcept
	Requests connection closure after all pending output data is delivered.
template<typename... _Args>
auto &	publish (_Args &&...args) noexcept
	Publishes data to the output buffer and ensures write readiness.
template<typename T>
auto &	operator<< (T &&data)
	Stream operator for publishing data.
void	disconnect (int reason=1)
	Initiates a graceful disconnection.
Public Member Functions inherited from qb::io::transport::udp
constexpr bool	is_secure () const noexcept
	Indicates that this transport implementation is not secure.
const udp::identity &	getSource () const noexcept
	Get the source udp::identity (endpoint) of the last successfully received datagram.
void	setDestination (udp::identity const &to) noexcept
	Set the destination udp::identity for subsequent outgoing datagrams sent via out() or operator<<.
auto &	out ()
	Get the output proxy (ProxyOut) for stream-like sending to the current destination.
int	read () noexcept
	Read a single datagram from the UDP socket.
int	write () noexcept
	Write the next complete datagram from the output buffer to its destination.
char *	publish (char const *data, std::size_t size) noexcept
	Publish (enqueue) data to be sent to the current default destination (_remote_dest).
char *	publish_to (udp::identity const &to, char const *data, std::size_t size) noexcept
	Publish (enqueue) data to be sent to a specific udp::identity destination.
Public Member Functions inherited from qb::io::stream< io::udp::socket >
output_buffer_type &	out () noexcept
	Get the output buffer.
std::size_t	pendingWrite () const noexcept
	Get the number of bytes pending for writing.
int	write (std::enable_if_t< has_method_write< io::udp::socket, int, const char *, std::size_t >::value, Available > *=nullptr) noexcept
	Write data from the output buffer to the transport.
char *	publish (char const *data, std::size_t size) noexcept
	Add data to the output buffer for later writing.
void	close () noexcept
	Close the stream.
Public Member Functions inherited from qb::io::istream< _IO_ >
	~istream () noexcept
	Destructor.
_IO_ &	transport () noexcept
	Get the underlying transport object.
const _IO_ &	transport () const noexcept
	Get the underlying transport object (const version)
input_buffer_type &	in () noexcept
	Get the input buffer.
std::size_t	pendingRead () const noexcept
	Get the number of bytes available for reading.
template<typename Available = void>
int	read (std::enable_if_t< has_method_read< _IO_, int, char *, std::size_t >::value, Available > *=nullptr) noexcept
	Read data from the transport into the input buffer.
void	flush (std::size_t size) noexcept
	Remove data from the front of the input buffer.
void	eof () noexcept
	Handle end-of-file condition.
void	close () noexcept
	Close the stream.

Static Public Attributes
static constexpr const bool	has_server
	Flag indicating server association (false for UDP clients)
Static Public Attributes inherited from qb::io::async::io< _Derived >
static constexpr const bool	has_server = false
	Indicates this component is not inherently a server.
Static Public Attributes inherited from qb::io::transport::udp
static constexpr const bool	has_reset_on_pending_read = true
	Indicates that this transport implementation resets its input buffer state when a read operation is pending (characteristic of datagram processing).
Static Public Attributes inherited from qb::io::stream< io::udp::socket >
static constexpr const bool	has_reset_on_pending_read
	Flag indicating whether the implementation resets pending reads.

Additional Inherited Members
Public Types inherited from qb::io::async::io< _Derived >
typedef io< _Derived >	base_io_t
	Base I/O type alias for CRTP.
Public Types inherited from qb::io::stream< io::udp::socket >
using	transport_io_type
	Type of the underlying transport IO.
using	output_buffer_type
	Type of the output buffer.
Public Types inherited from qb::io::istream< _IO_ >
using	transport_io_type = _IO_
	Type of the underlying transport IO.
using	input_buffer_type = qb::allocator::pipe<char>
	Type of the input buffer.
Public Attributes inherited from qb::io::transport::udp
friend	ProxyOut
	ProxyOut needs access to private members.
Protected Member Functions inherited from qb::io::async::io< _Derived >
void	dispose ()
	Disposes of resources and finalizes disconnection for the I/O component.
Protected Member Functions inherited from qb::io::async::base< io< _Derived >, event::io >
	base ()
	Constructor that registers the event watcher with the current listener.
	~base ()
	Destructor that unregisters the event watcher.
Protected Attributes inherited from qb::io::async::base< io< _Derived >, event::io >
event::io &	_async_event
	Reference to the registered libev-based event watcher.
Protected Attributes inherited from qb::io::stream< io::udp::socket >
output_buffer_type	_out_buffer
	Buffer for outgoing data.
Protected Attributes inherited from qb::io::istream< _IO_ >
_IO_	_in
	The underlying IO object.
input_buffer_type	_in_buffer
	Buffer for incoming data.

Detailed Description

template<typename _Derived>
class qb::io::async::udp::client< _Derived >

Asynchronous UDP client implementation.

This template class implements an asynchronous UDP client. It combines the io class for asynchronous operations with the UDP transport for handling UDP communications. If the derived class defines a Protocol type, it will be used for processing UDP messages.

Template Parameters

_Derived

The derived class type (CRTP pattern)

Constructor & Destructor Documentation

client()

template<typename _Derived>

qb::io::async::udp::client< _Derived >::client ( )

inlinenoexcept

Constructor.

Creates a new UDP client. If the derived class defines a Protocol type that is not void, an instance of that protocol is created and attached to the client.

Member Data Documentation

has_server

template<typename _Derived>

const bool qb::io::async::udp::client< _Derived >::has_server

staticconstexpr

Initial value:

=
        false

Flag indicating server association (false for UDP clients)
