Actor and core identification for the QB Actor Framework. More...

#include <algorithm>
#include <bitset>
#include <cstdint>
#include <limits>
#include <unordered_set>
#include <vector>
#include <qb/io.h>
#include <qb/system/container/unordered_set.h>
#include <qb/utility/build_macros.h>
#include <qb/utility/prefix.h>

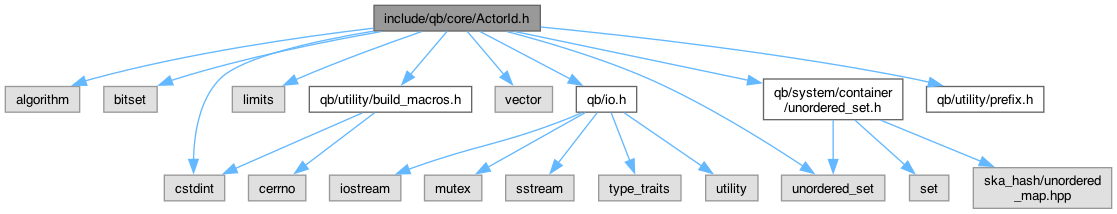

Include dependency graph for ActorId.h:

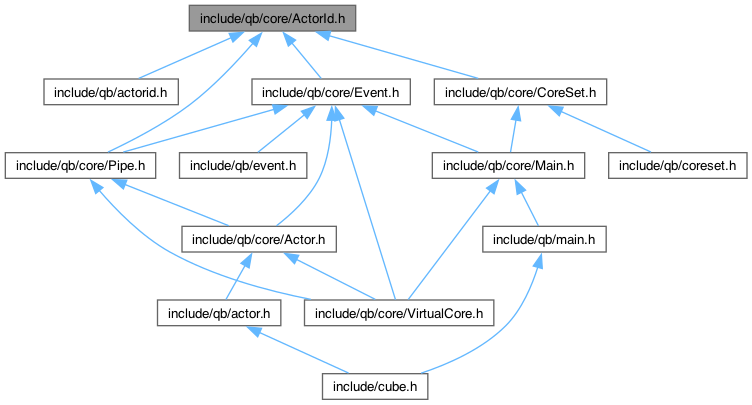

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	qb::CoreIdBitSet
	Efficient representation of a set of core IDs using a bitset. More...
class	qb::CoreIdBitSet::iterator
	Iterator for traversing set bits in a CoreIdBitSet. More...
class	qb::ActorId
	Unique identifier for actors. More...
class	qb::BroadcastId
	Specialized ActorId for broadcasting messages to all actors on a core. More...
struct	std::hash< qb::ActorId >
	Specialization of std::hash for qb::ActorId. More...

Typedefs
using	qb::CoreId = uint16_t
	Type definition for core identifiers.
using	qb::ServiceId = uint16_t
	Type definition for service identifiers.
using	qb::TypeId = uint16_t
	Type definition for type identifiers.
using	qb::EventId = TypeId
	Type definition for event identifiers.
using	qb::CoreIdSet = CoreIdBitSet
	Efficient set implementation for storing CoreId values.
using	qb::ActorIdList = std::vector<ActorId>
	List of actor identifiers.
using	qb::ActorIdSet = std::unordered_set<ActorId>
	Set of unique actor identifiers.
using	qb::core_id = CoreId
	Alias for CoreId.
using	qb::service_id = ServiceId
	Alias for ServiceId.
using	qb::actor_id = ActorId
	Alias for ActorId.
using	qb::broadcast_id = BroadcastId
	Alias for BroadcastId.
using	qb::actor_id_list = ActorIdList
	Alias for ActorIdList.
using	qb::actor_is_set = ActorIdSet
	Alias for ActorIdSet.
using	qb::core_id_set = CoreIdSet
	Alias for CoreIdSet.

Variables
constexpr size_t	qb::MaxCores = 256
	Maximum number of cores supported in a system.

Detailed Description

Actor and core identification for the QB Actor Framework.

This file defines the core identification types and the ActorId class which is used for uniquely identifying actors within the QB Actor Framework. It provides types for core IDs, service IDs, and actor IDs, as well as utilities for set operations on collections of core IDs.

The ActorId is a compound identifier that includes both the core ID where an actor is located and a service ID that uniquely identifies the actor within that core.
