qb::lockfree::spsc::internal::ringbuffer< T > Class Template Reference

Base implementation of the Single-Producer Single-Consumer ringbuffer. More...

#include <spsc.h>

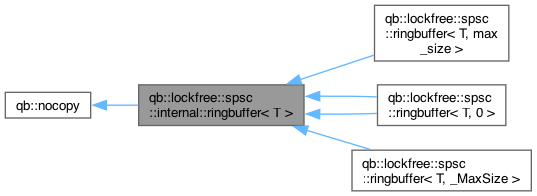

Inheritance diagram for qb::lockfree::spsc::internal::ringbuffer< T >:

Collaboration diagram for qb::lockfree::spsc::internal::ringbuffer< T >:

Public Member Functions
bool	empty ()
	Check if the buffer is empty.
Public Member Functions inherited from qb::nocopy
	nocopy ()=default
	Default constructor.
	nocopy (nocopy const &)=delete
	Deleted copy constructor.
	nocopy (nocopy const &&)=delete
	Deleted move constructor.
nocopy &	operator= (nocopy const &)=delete
	Deleted copy assignment operator.
nocopy &	operator= (nocopy &&)=delete
	Deleted move assignment operator.

Protected Member Functions
	ringbuffer ()
	Default constructor initializing indices.
size_t	read_available (size_t const max_size) const
	Get the number of elements available for reading.
size_t	write_available (size_t const max_size) const
	Get the number of slots available for writing.
bool	enqueue (T const &t, T *buffer, size_t const max_size)
	Enqueue a single element into the buffer.
template<bool _All>
size_t	enqueue (const T *input_buffer, size_t input_count, T *internal_buffer, size_t const max_size)
	Enqueue multiple elements into the buffer.
size_t	dequeue (T *output_buffer, size_t output_count, T *internal_buffer, size_t const max_size)
	Dequeue multiple elements from the buffer.
template<typename _Func>
size_t	consume_all (_Func const &functor, T *internal_buffer, size_t max_size)
	Process all available elements in the buffer using a functor.
const T &	front (const T *internal_buffer) const
	Get a reference to the element at the read index (const version)
T &	front (T *internal_buffer)
	Get a reference to the element at the read index.

Static Protected Member Functions
static size_t	next_index (size_t arg, size_t const max_size)
	Calculate the next index in the buffer with wrap-around handling.
static size_t	read_available (size_t write_index, size_t read_index, size_t const max_size)
	Calculate how many elements are available for reading.
static size_t	write_available (size_t write_index, size_t read_index, size_t const max_size)
	Calculate how many elements can be written.

Detailed Description

template<typename T>
class qb::lockfree::spsc::internal::ringbuffer< T >

Base implementation of the Single-Producer Single-Consumer ringbuffer.

This class provides the core functionality for SPSC ringbuffers, handling the read and write index management and the memory operations required for enqueueing and dequeueing elements.

Template Parameters

T	Type of elements stored in the ringbuffer

Member Function Documentation

next_index()

template<typename T>

size_t qb::lockfree::spsc::internal::ringbuffer< T >::next_index ( size_t arg, size_t const max_size )

inlinestaticprotected

Calculate the next index in the buffer with wrap-around handling.

Parameters

arg	Current index
max_size	Maximum size of the buffer

Returns

Next index with wrap-around if needed

read_available() [1/2]

template<typename T>

size_t qb::lockfree::spsc::internal::ringbuffer< T >::read_available ( size_t write_index, size_t read_index, size_t const max_size )

inlinestaticprotected

Calculate how many elements are available for reading.

Parameters

write_index	Current write index
read_index	Current read index
max_size	Maximum size of the buffer

Returns

Number of elements available for reading

write_available() [1/2]

template<typename T>

size_t qb::lockfree::spsc::internal::ringbuffer< T >::write_available ( size_t write_index, size_t read_index, size_t const max_size )

inlinestaticprotected

Calculate how many elements can be written.

Parameters

write_index	Current write index
read_index	Current read index
max_size	Maximum size of the buffer

Returns

Number of slots available for writing

read_available() [2/2]

template<typename T>

size_t qb::lockfree::spsc::internal::ringbuffer< T >::read_available ( size_t const max_size ) const

inlinenodiscardprotected

Get the number of elements available for reading.

Parameters

max_size

Maximum size of the buffer

Returns

Number of elements available for reading

write_available() [2/2]

template<typename T>

size_t qb::lockfree::spsc::internal::ringbuffer< T >::write_available ( size_t const max_size ) const

inlinenodiscardprotected

Get the number of slots available for writing.

Parameters

max_size

Maximum size of the buffer

Returns

Number of slots available for writing

enqueue() [1/2]

template<typename T>

bool qb::lockfree::spsc::internal::ringbuffer< T >::enqueue ( T const & t, T * buffer, size_t const max_size )

inlineprotected

Enqueue a single element into the buffer.

Parameters

t	Element to enqueue
buffer	Pointer to the internal buffer
max_size	Maximum size of the buffer

Returns

true if the element was successfully enqueued, false if the buffer is full

enqueue() [2/2]

template<typename T>

template<bool _All>

size_t qb::lockfree::spsc::internal::ringbuffer< T >::enqueue ( const T * input_buffer, size_t input_count, T * internal_buffer, size_t const max_size )

inlineprotected

Enqueue multiple elements into the buffer.

Template Parameters

_All	If true, either all elements are enqueued or none

Parameters

input_buffer	Pointer to source elements
input_count	Number of elements to enqueue
internal_buffer	Pointer to the internal buffer
max_size	Maximum size of the buffer

Returns

Number of elements successfully enqueued

dequeue()

template<typename T>

size_t qb::lockfree::spsc::internal::ringbuffer< T >::dequeue ( T * output_buffer, size_t output_count, T * internal_buffer, size_t const max_size )

inlineprotected

Dequeue multiple elements from the buffer.

Parameters

output_buffer	Destination buffer for dequeued elements
output_count	Maximum number of elements to dequeue
internal_buffer	Pointer to the internal buffer
max_size	Maximum size of the buffer

Returns

Number of elements successfully dequeued

consume_all()

template<typename T>

template<typename _Func>

size_t qb::lockfree::spsc::internal::ringbuffer< T >::consume_all ( _Func const & functor, T * internal_buffer, size_t max_size )

inlineprotected

Process all available elements in the buffer using a functor.

Template Parameters

_Func

Functor type

Parameters

functor	Function to call for each batch of elements
internal_buffer	Pointer to the internal buffer
max_size	Maximum size of the buffer

Returns

Number of elements processed

front() [1/2]

template<typename T>

const T & qb::lockfree::spsc::internal::ringbuffer< T >::front ( const T * internal_buffer ) const

inlineprotected

Get a reference to the element at the read index (const version)

Parameters

internal_buffer

Pointer to the internal buffer

Returns

Const reference to the front element

front() [2/2]

template<typename T>

T & qb::lockfree::spsc::internal::ringbuffer< T >::front ( T * internal_buffer )

inlineprotected

Get a reference to the element at the read index.

Parameters

internal_buffer

Pointer to the internal buffer

Returns

Reference to the front element

empty()

template<typename T>

bool qb::lockfree::spsc::internal::ringbuffer< T >::empty ( )

inline

Check if the buffer is empty.

Returns

true if the buffer is empty, false otherwise
